Direct fired heater Model: B 35 CEL
  • Direct fired heater Model: B 35 CEL
  • Direct fired heater Model: B 35 CEL
  • Direct fired heater Model: B 35 CEL

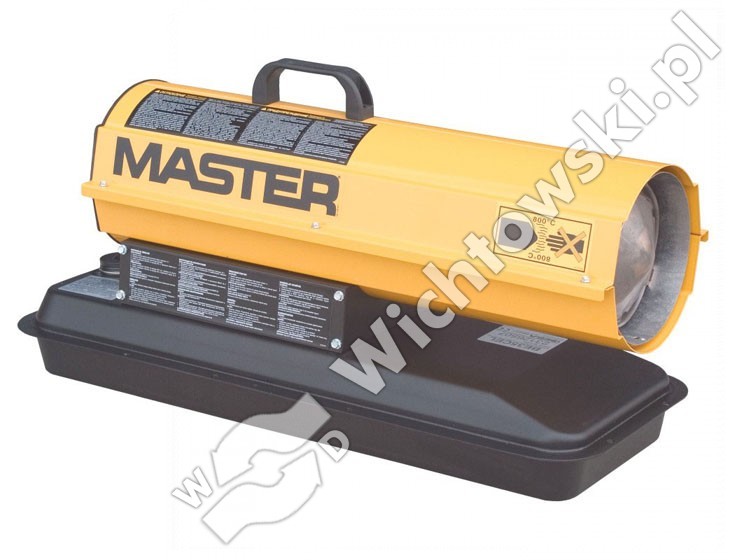

Direct fired heater Model: B 35 CEL

Efficiency [kW]: 10
Air flow [m3/h]: 280
Fuel consumption [kg/h]: 0,86
Ignition: żarnik
Net weight [kg]: 17
1,242.30 zł
Tax included
Quantity

MASTER
View all products of MASTER
Specifications:
Capacity: 10 kW
  35.000 Btu/h
  8.800 Kcal/h
Air displacement: 280 m?/h
Fuel consumption: 0,86 kg/h
Fuel: kerosene/diesel oil
Tank capacity: 15 lt
Blast temperature: 175 °C
Motor power: 0,02 kW
Rated current: 0,8 A
Current type: AC
Power supply: 230/50 V/Hz
Dimensions LxWxHt: 81x35x46 cm
Weight net (gross): 17 (19) kg
Photocell cutout: standard
Thermostat control: optional

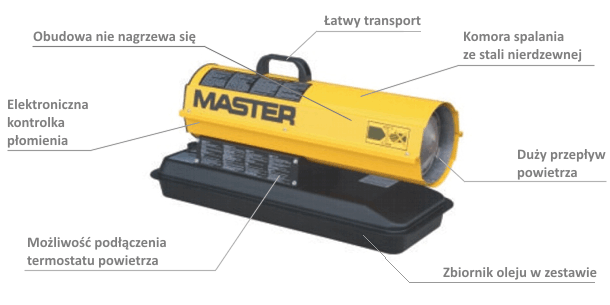

Description:
  • extremely easy portable heater
  • 100% efficiency
  • easy to service and maintain
  • standard photocell cutoff
  • housing remains cool to the touch
  • adjustable for clean combustion
  • full automatic operation with room thermostat
  • high air displacement
  • overheat switch protection
  • also comes with a wheel accessory

Accessories:



Room thermostat
TH-2
Code 4100.426

Trolley
Code 4103.925



Data sheet

Fuel type
olej napędowy / olej opałowy
Efficiency [kW]
10
Efficiency [Btu/h]
35000
Efficiency [Kcal/h]
8800
Air flow [m<sup>3</sup>/h]
280
Fuel consumption [kg/h]
0,86
Rated current [A]
0,8
Power [V/Hz]
230/50
Ignition
żarnik
Tank capacity [l]
15
Thermostat control
możliwa - TH 2
Blast temperature [°C]
175
Net weight [kg]
17
Gross weight [kg]
19
Dimensions - L. X width. X height. [mm]
810x350x450

Specific References

Download

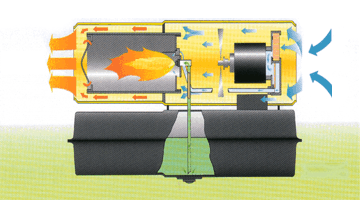

Schemat nagrzewnicy B 35, 70, 10

Download (702.72KB)
